Neo4j is a graph database management system designed to handle large-scale, highly interconnected data. It enables users to model data as nodes (entities) and relationships (connections) with associated properties.

This notebook covers:

Setting up and connecting to a Neo4j server
Creating nodes with labels and properties
Creating relationships between nodes
Write clauses: MERGE, SET, DELETE
Read clauses: MATCH, OPTIONAL MATCH, WHERE, COUNT
Visualizing a graph with NetworkX

%load_ext autoreload
%autoreload 2
%matplotlib inline

import logging

import neo4j as nj
import py2neo as pyneo

import helpers.hdbg as hdbg
import helpers.hnotebook as hnotebo
import tutorials.tutorial_neo4j.neo4j_utils as ttneouti

hdbg.init_logger(verbosity=logging.INFO)
_LOG = logging.getLogger(__name__)
hnotebo.config_notebook()

1. Starting the Neo4j Server¶

Neo4j uses the following default ports:

7474: HTTP port for Neo4j Browser and REST API
7687: Bolt protocol port for database queries
7473: HTTPS port (optional)

Start the server with:

sudo neo4j start

# Start the Neo4j server inside the Docker container.
!sudo neo4j start

2. Connecting to the Server¶

Use the Bolt protocol URI and authentication credentials to connect.

Key functions:

GraphDatabase.driver(URI, auth=(USER, PASSWORD)): creates the driver
driver.verify_connectivity(): verifies the connection

# URI and authentication details.
URI = "neo4j://localhost:7687"
USER = "neo4j"
PASSWORD = "neo4j"

# Create a driver instance.
driver = nj.GraphDatabase.driver(URI, auth=(USER, PASSWORD))
driver.verify_connectivity()
_LOG.info("Connection established.")

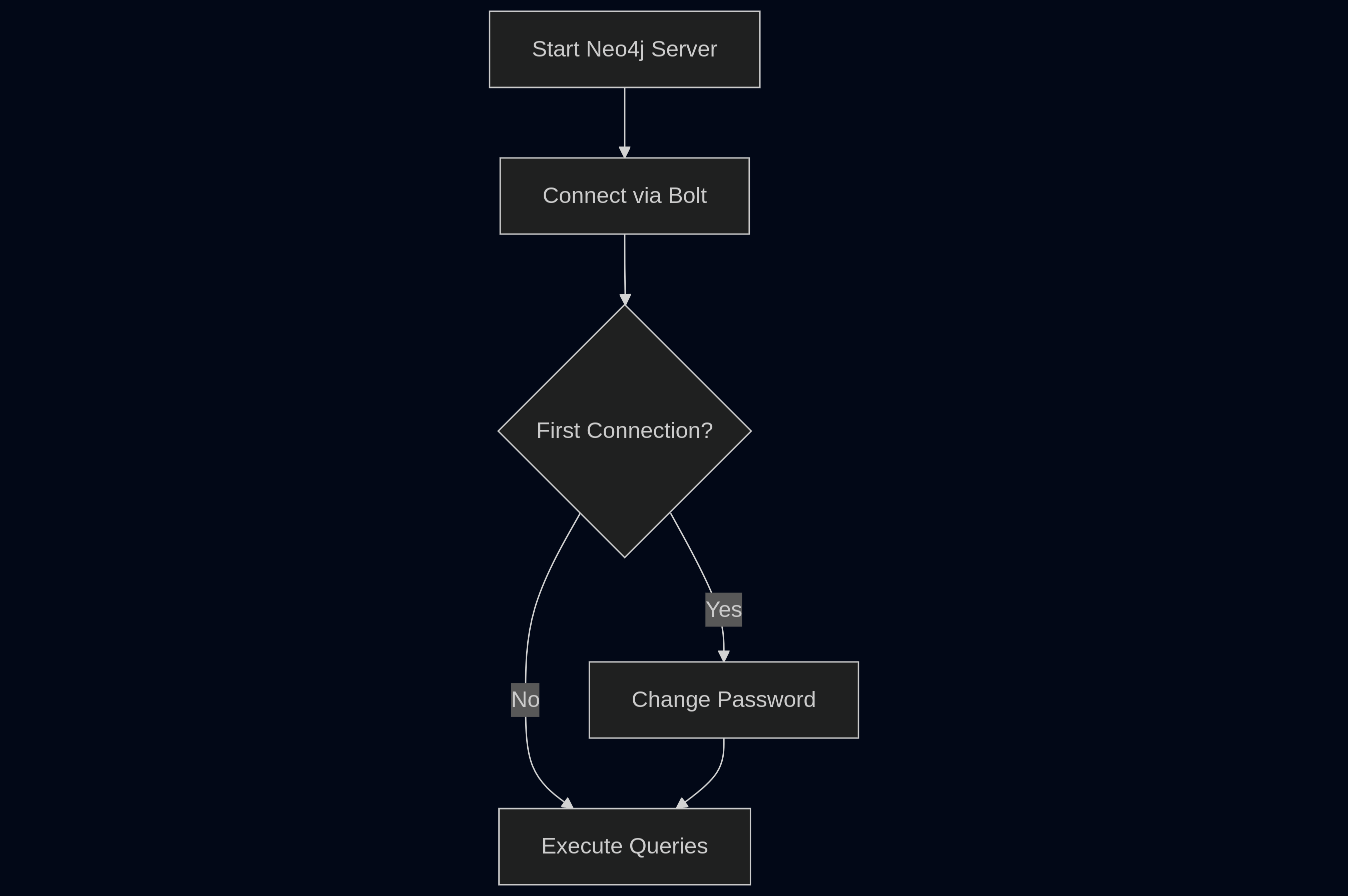

3. Updating the Password¶

The default credentials (neo4j/neo4j) must be changed on first use. Once updated, the change is permanent unless you do a clean reinstallation.

Steps:

Run the ALTER CURRENT USER Cypher command via execute_write
Reconnect with the new password

# Change the default password.
ttneouti.change_password(driver, "neo4j", "new_password")

# Reconnect with the new password.
driver = nj.GraphDatabase.driver(URI, auth=("neo4j", "new_password"))
driver.verify_connectivity()
_LOG.info("Connection established with new password.")

# Connect to the graph using py2neo for inspection.
graph = pyneo.Graph(URI, auth=(USER, "new_password"))

4. Creating Nodes¶

A node is a fundamental unit of data in Neo4j. It can have:

Labels: categorize the node (e.g., Person, Employee)
Properties: key-value pairs (e.g., name, age, city)

The CREATE statement adds new nodes; tx.run() executes queries within a transaction.

with driver.session() as session:
    # Create a simple Person node.
    session.execute_write(ttneouti.create_person, "Dave")
    # Create an Employee node.
    session.execute_write(ttneouti.create_node_with_label, "Employee", "Grace")
    # Create a node with both Person and Employee labels.
    session.execute_write(
        ttneouti.create_node_with_multiple_labels, ["Person", "Employee"], "Hank"
    )
    # Create a Person with multiple properties.
    session.execute_write(
        ttneouti.create_node_with_properties,
        "Person",
        {"name": "Ivy", "age": 28, "city": "New York"},
    )
    # Create a Person and get back the created node.
    created_node = session.execute_write(
        ttneouti.return_created_node, "Person", "Jack"
    )
_LOG.info("Created node: %s", created_node)

# View all nodes and relationships.
ttneouti.view_graph(graph)

# Clear the database before the next example.
with driver.session() as session:
    session.execute_write(ttneouti.clear_database)

5. Creating Relationships Between Nodes¶

Relationships connect two nodes with a directed edge and a type (e.g., KNOWS, WORKS_WITH). They can also carry properties.

Pattern:

MATCH (a:Person {name: $node1_name}), (b:Person {name: $node2_name})
CREATE (a)-[:KNOWS]->(b)

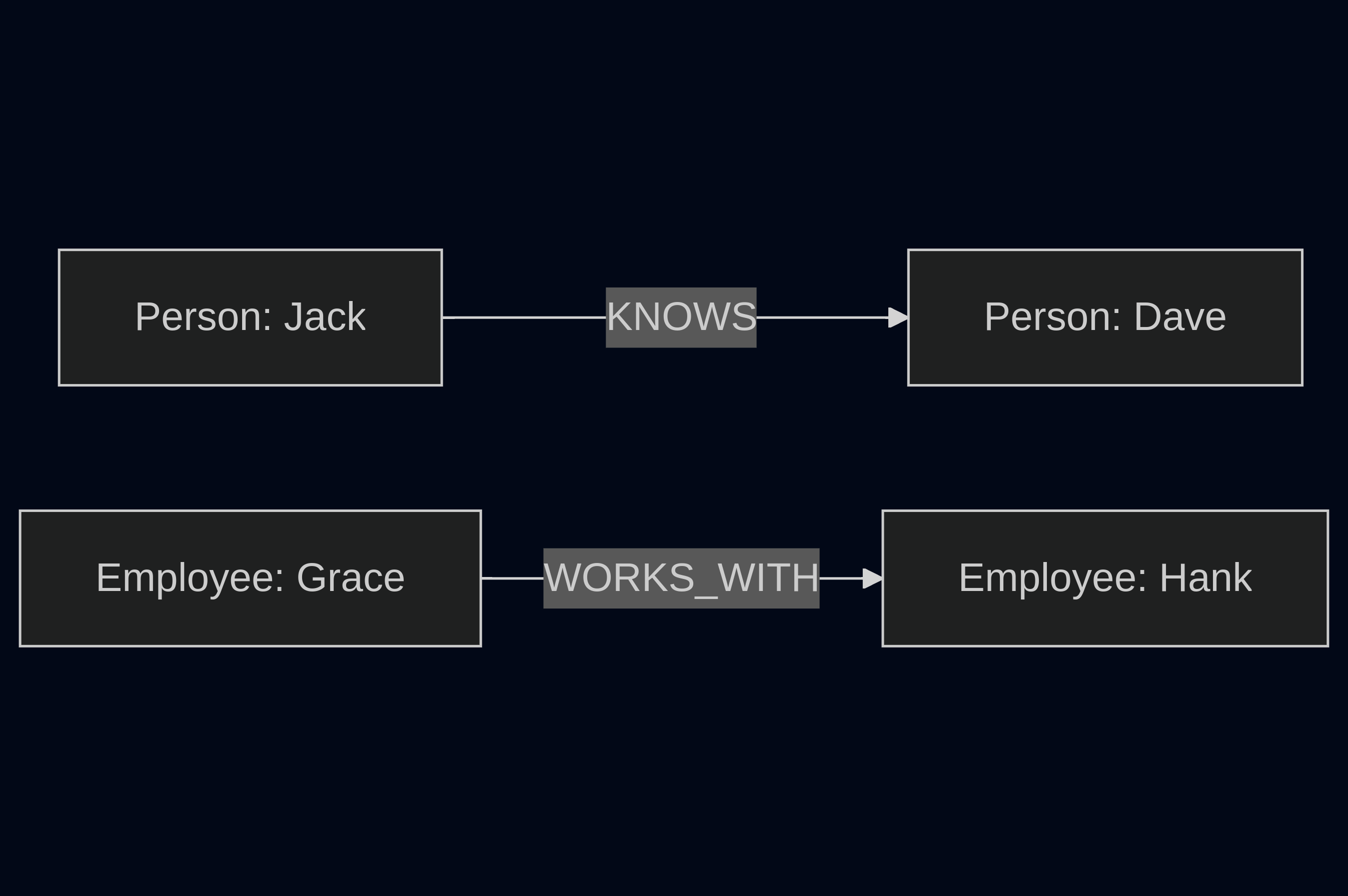

Example graph:

Jack --[:KNOWS]--> Dave
Grace --[:WORKS_WITH {since: 2020}]--> Hank

with driver.session() as session:
    # Recreate nodes for the relationships demo.
    session.execute_write(ttneouti.create_person, "Dave")
    session.execute_write(ttneouti.create_person, "Jack")
    session.execute_write(ttneouti.create_node_with_label, "Employee", "Grace")
    session.execute_write(
        ttneouti.create_node_with_multiple_labels, ["Person", "Employee"], "Hank"
    )
    # Create a simple KNOWS relationship.
    session.execute_write(
        ttneouti.create_relationship, "Person", "Jack", "KNOWS", "Person", "Dave"
    )
    # Create a WORKS_WITH relationship with a 'since' property.
    session.execute_write(
        ttneouti.create_relationship_with_properties,
        "Employee",
        "Grace",
        "WORKS_WITH",
        {"since": 2020},
        "Employee",
        "Hank",
    )
_LOG.info("Relationships created.")
ttneouti.view_graph(graph)

6. Write Clauses¶

MERGE¶

Ensures the node or relationship exists:

If it exists, it is matched
If it doesn’t exist, it is created

SET¶

Updates properties of a node or relationship.

DELETE¶

Removes nodes or relationships.

with driver.session() as session:
    # Create Alice and Bob.
    session.execute_write(
        ttneouti.create_node_with_properties,
        "Person",
        {"name": "Alice", "age": 30},
    )
    session.execute_write(
        ttneouti.create_node_with_properties,
        "Person",
        {"name": "Bob", "age": 25},
    )
    # Create a KNOWS relationship.
    session.execute_write(
        ttneouti.create_relationship, "Person", "Alice", "KNOWS", "Person", "Bob"
    )
    # MERGE: add Charlie if not present.
    session.execute_write(
        ttneouti.merge_node, "Person", {"name": "Charlie", "age": 25}
    )
    # MERGE: add Alice-Charlie relationship.
    session.execute_write(
        ttneouti.merge_relationship,
        "Person",
        "Alice",
        "KNOWS",
        "Person",
        "Charlie",
    )
    # SET: update Alice's age and add city.
    session.execute_write(
        ttneouti.set_properties,
        "Person",
        "Alice",
        {"age": 31, "city": "New York"},
    )
    _LOG.info("Graph before deletion:")
    ttneouti.view_graph(graph)

    # DELETE: remove Alice-Bob relationship.
    session.execute_write(
        ttneouti.delete_relationship,
        "Person",
        "Alice",
        "KNOWS",
        "Person",
        "Bob",
    )
    # DELETE: remove Bob node.
    session.execute_write(ttneouti.delete_node, "Person", "Bob")
    _LOG.info("Graph after deletion:")
    ttneouti.view_graph(graph)

7. Read Clauses¶

MATCH¶

Retrieves nodes, relationships, or paths matching a pattern.

MATCH (n) RETURN n

OPTIONAL MATCH¶

Like MATCH but includes nodes with no matching relationships (returns null).

WHERE¶

Filters results by conditions.

MATCH (a:Person) WHERE a.age > 25 RETURN a.name, a.age

COUNT¶

Aggregates by counting nodes, relationships, or paths.

with driver.session() as session:
    # Find and print all nodes.
    session.execute_read(ttneouti.find_all_nodes)
    # Find who Grace works with.
    session.execute_read(ttneouti.find_relations, "Grace")
    # Optional match: persons and who they know.
    session.execute_read(ttneouti.optional_match)
    # Where clause: persons older than 25.
    session.execute_read(ttneouti.where_clause)
    # Count all Person nodes.
    session.execute_read(ttneouti.count_function)

8. Clean Up¶

driver.close()
_LOG.info("Connection closed.")
