Multi-Agent Reinforcement Learning (MARL) with TorchRL and MPE

Goal¶

This tutorial walks through a complete, runnable example of multi-agent reinforcement learning (MARL) in the Multi-Agent Particle Environment (MPE) using TorchRL. The emphasis is on:

Most MARL tutorials show moving loss curves, increasing rewards, and “healthy-looking” training, but those signals rarely verify whether agents truly coordinate or whether communication carries useful information at evaluation time.

• building an end-to-end MARL pipeline (env → policy/critic → training → evaluation)
• training agents to collaborate on a shared objective
• validating that communication is actually being used, not just “happening”
• measuring coordination with success metrics, goal-distance debugging, and communication diagnostics
• documenting real engineering iteration: what failed, how we diagnosed it, and why the final setup was chosen

What you’ll build in about 60 minutes¶

• an environment + wrapper layer for PettingZoo MPE with explicit message-channel wiring
• a CTDE training setup with decentralized actors and a centralized critic
• outcome-aligned evaluation built around success, distances, and communication metrics
• communication verification using message_entropy, message_change_rate, and observation-derived checks
• optional causal ablations such as full_comm, disable_comm, and random_comm

Problem setup: MPE simple_reference¶

We use MPE simple_reference / simple_reference_v3, a classic communication task:

• Agents must coordinate to reach the correct goal/landmark.
• One agent can “speak” (send a message token).
• Another agent “listens” and moves based on its observation (which includes received communication).

This environment is ideal because it forces coordination + emergent communication: if messages are useful, performance should improve; if messages are random, agents fail.

Why TorchRL + PettingZoo (MPE)?¶

This stack provides:

• a clean multi-agent API through PettingZoo
• a PyTorch-native RL pipeline through TorchRL
• full control over observations, actions, and message channels
• lightweight local reproducibility for debugging and iteration

MPE is especially useful for:

• studying coordination failure modes
• debugging communication mechanisms
• practicing CTDE engineering patterns

System design: CTDE (Centralized Training, Decentralized Execution)¶

Our training pipeline follows the standard CTDE pattern used in cooperative MARL:

Decentralized execution¶

Each agent selects actions from its local observation (no access to full global state at inference).

Centralized training signal¶

A centralized critic (value function) can use a global state (or concatenated observations) during training to reduce variance and improve stability.

Why CTDE matters¶

• In MARL, the environment is non-stationary because other agents’ policies change during learning.
• A centralized critic helps stabilize advantage estimation and reduces noisy learning signals.

What we tried first: A3C (single-worker and multi-worker)¶

The project began by directly implementing A3C-style learning, because it is a canonical on-policy approach and matches the provided project description.

Attempt 1: Single-worker A3C (CTDE)¶

We first built a single-worker A3C loop to validate:

• action sampling
• stepping TorchRL-wrapped PettingZoo envs
• centralized critic wiring
• advantage/return computation
• gradient updates

This step was important because it gave us a stable base to verify pipeline correctness before adding multi-process complexity.

Attempt 2: Multi-worker A3C (asynchronous)¶

We then implemented multi-worker A3C (spawned processes, shared models, asynchronous-style updates). In practice, this caused stability issues that are common when combining:

• MARL + communication (hard exploration + credit assignment early)
• on-policy high-variance updates
• asynchronous / policy-lag effects
• macOS + notebooks constraints (spawn + device limitations)

We tried many tuning passes, but repeatedly observed failure modes where optimization proceeds (loss changes) without actual policy learning.

Diagnostics: how we proved A3C wasn’t learning¶

We did not treat “loss decreasing” as success. We inspected the actual coordination signals.

1) Success rate stayed at 0.0¶

In a representative run, evaluation success was flat:

• success = 0.0 across evaluation episodes
• evaluation plot “Eval success” remained at 0.0 across training

This means: regardless of noise in returns, the agents are not achieving the goal.

2) Success debugging confirmed the policy is far from goals¶

We directly inspected distances to each agent’s assigned goal landmark:

Example debug outputs:

distances=[1.568, 1.887], threshold=0.35
distances=[2.157, 2.993], threshold=0.35

Because success requires all distances ≤ 0.35, these values show agents are not even close to reliably reaching goals.

3) Communication appeared random (high entropy + high change rate)¶

We measured message usage two ways:

• Action-derived: decode the SAY token from the discrete action index → message_entropy, message_change_rate
• Observation-derived: infer message token from the comm slice of the next observation → message_entropy_obs, message_change_rate_obs

In the failing A3C setup, both matched closely:

• message_change_rate ≈ 0.89–0.91
• message_entropy ≈ 2.20–2.21
• obs-derived metrics were consistent (*_obs)

Interpretation:

• A ~0.9 message change rate means the speaker changes message almost every step.
• Entropy near ~2.2 is close to a near-uniform distribution over ~9–10 symbols.
• Together, this indicates random / unstructured communication, not meaningful signaling.

We even added an automated warning when entropy didn’t drop:

[WARNING ep 200] Communication entropy not decreasing!
  Early (ep ~20): 2.199, Late (ep ~200): 2.201
  Agents may not be learning task-relevant messages

4) Returns alone were misleading¶

We observed occasional spikes in episode return, but they did not correlate with success. Since we experimented with reward shaping (distance-to-goal terms), raw returns can fluctuate without reflecting actual task completion.

For this task, we treat:

• success rate
• goal distance debug
• communication structure metrics

as the primary indicators of meaningful learning.

Engineering iteration: what we changed while debugging¶

Before moving to the final setup, we invested significant effort in ensuring the system was correctly wired and that the failure was truly due to learning instability (not bugs).

Communication wiring validation¶

We implemented a deterministic sanity check:

• Vary SAY while holding MOVE constant → comm slice in next obs must change
• Vary MOVE while holding SAY constant → comm slice should not change

This ensured action encoding/decoding and comm injection into observations were correct.

Codec and comm consistency checks¶

We compared action-derived vs observation-derived comm metrics and flagged divergence:

• large mismatch suggests codec errors or comm not entering obs properly

Hyperparameter tuning¶

We ran multiple tuning rounds on:

• learning rate
• entropy coefficient (including decay schedules)
• rollout horizon (n_steps)
• episode horizon (max_cycles)
• value loss coefficient and grad clipping

Reward shaping experiments¶

We tried shaping using goal distance:

reward = reward_base - α * goal_dist

to densify early learning signals.

We also validated shaping carefully using success + comm metrics, not returns alone.

Behavior inspection¶

We printed decoded (say, move) tokens and visually inspected whether:

• messages stabilized
• movement became directed
• listener behavior changed under message manipulations

These checks gave us confidence the system wiring was correct and the limitation was primarily optimization stability for A3C in this MARL communication setting.

Final approach: stable configuration that produced results¶

After repeatedly seeing A3C stability issues and unstructured communication, we transitioned to the current stable setup used for our final results.

Key characteristics of the final approach:

• end-to-end training remained on-policy and CTDE-aligned
• we prioritized stability, measurable progress, and interpretable communication behavior
• evaluation emphasized success and communication evidence, not just return curves

This final configuration is what the example notebook (TorchRL_MAC.example.ipynb) runs end-to-end and is the version we recommend as a starting point for future students.

Evaluation methodology: proving cooperation and communication¶

To evaluate cooperation and communication rigorously, we prioritize structured evaluation over noisy return curves and report:

Core task metrics¶

• Return: sum of shaped rewards (useful for monitoring but not sufficient)
• Success: binary success based on all agents being within success_dist of their assigned goals
• Goal distances: inspected directly for debugging and interpretability

Communication metrics (two independent sources)¶

Action-derived¶

• message_entropy
• message_change_rate

Observation-derived¶

• message_entropy_obs
• message_change_rate_obs

Why both matter:

• agreement between these indicates comm wiring is correct
• decreasing entropy/change-rate indicates emerging structure and stable signalling

Causal ablations¶

• full_comm
• disable_comm
• random_comm

If communication matters, success should drop when it is removed or randomized.

Expected outputs¶

When you run the example notebook end-to-end, you should see:

• training curves (return/loss/entropy depending on setup)
• evaluation success statistics
• message entropy + message change rate curves
• printed debug summaries for goal distances and comm metrics

Takeaways¶

This project demonstrates a practical MARL workflow:

• implement the algorithm suggested by the prompt (A3C)
• measure learning using task-grounded metrics (success + distances)
• verify communication is real (entropy/change-rate + wiring checks + ablations)
• recognize instability patterns (loss changes without success)
• iterate with tuning, shaping, and debugging
• converge to a stable final setup that produces interpretable results

0. Imports¶

1. Configure Training¶

Using small settings for quick demonstration. For better results, increase num_iters to 500-1000.

2. Train Policy¶

Train separate actor networks for each agent with a centralized critic.

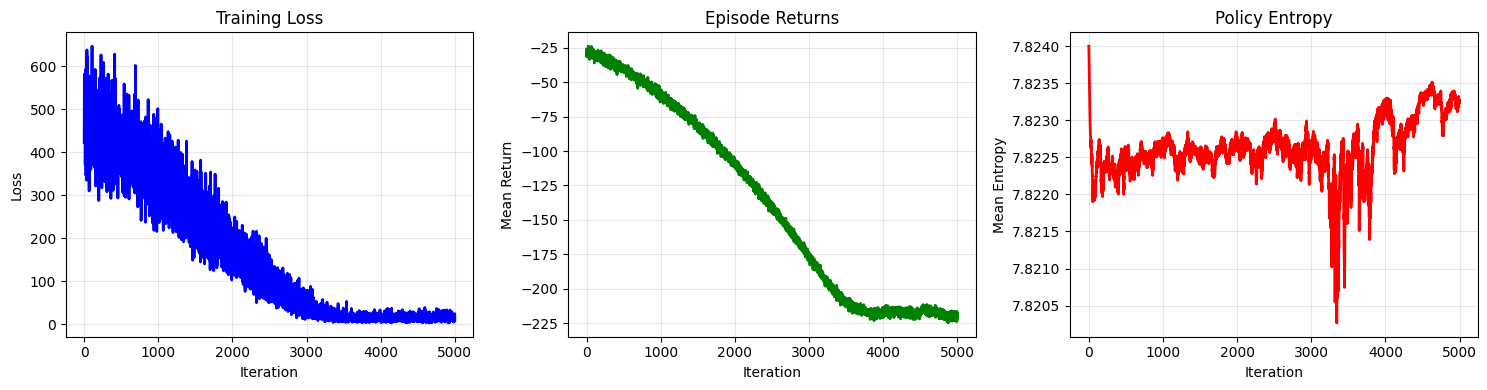

3. Plot Training Progress¶

4. Evaluate: Normal Mode (With Communication)¶

5. Evaluate: No-Communication Mode (Speaker Silenced)¶

6. Compare and Compute Communication Efficiency¶

7. Interpretation¶

Metrics Explanation:¶

• Success Rate (with comm): How often the listener reaches the correct landmark when the speaker can communicate
• Success Rate (no comm): How often the listener succeeds without any speaker signals (baseline)
• Communication Cost: Average “expense” of speaker actions (0 = no communication, higher = more communication)
• Communication Gain: Improvement from communication (= success_with_comm - success_no_comm)
• Communication Efficiency: How much success per unit of communication (= gain / cost)

Good results show:¶

1. Higher success rate with communication than without
2. Positive communication gain
3. High communication efficiency (agents learned to use minimal but informative signals)

Final takeaway:¶

• Loss curves are not evidence of coordination
• Reward trends are not proof of cooperation
• Success metrics, diagnostics, and ablations are

Notes:¶

• With only 10 training iterations, the policy is undertrained
• For meaningful results, train for 500-1000 iterations
• Increase eval_episodes to 100+ for stable metrics

Next Steps and Troubleshooting¶

To improve results:

1. Increase cfg.num_iters to 500-1000
2. Tune hyperparameters (lr, gamma, entropy_coef)
3. Increase cfg.eval_episodes to 100 for stable metrics
4. Try different network architectures (hidden_dim, actor_layers)
5. Experiment with reward shaping or curriculum learning

If something looks wrong during evaluation:

• Success rate stays at 0.0: check the success threshold, print goal distances, and verify the environment version
• Communication metrics look random: train longer, tune entropy_coef, and rerun the communication sanity checks
• Wrapper or spec errors appear: confirm installed package versions and inspect the API notebook first
