Overview: why xarray?

try:
    import xarray
except ModuleNotFoundError:
    !sudo /bin/bash -c "(source /venv/bin/activate; pip install --quiet xarray)"
    pass
#
import numpy as np

print("numpy version=", np.__version__)

#
import xarray as xr

print("xarray version=", xr.__version__)
numpy version= 1.26.4
xarray version= 2024.7.0
# from IPython.display import HTML, display

# display(HTML("<style>.container { width:77% !important; }</style>"))
  • numpy N-dim arrays (aka tensors) are used in many parts of computational science

  • numpy provides raw N-dimensional arrays

  • Real-world datasets need labels to encode information about how array values map to actual data

  • xarray adds labels (e.g., dimensions, coordinates, attributes) to numpy N-dim arrays

  • xarray:

    • applies operations over dimensions by name
    • uses dimension names (e.g., dim='time' vs axis=0)
    • selects values by label (instead of integer location)
    • vectorizes operations based on dimension names and not shape
    • implements split-apply-combine paradigm

Core data structures

  • DataArray is labeled N-dimensional array

    • generalizes pd.Series to N dimensions
    • attaches labels to np.ndarray
  • Dataset is dict-like container of DataArray

    • arrays in Dataset can have different number of dimensions
  • xarray integrates with the Pydata ecosystem (numpy, pandas, Dask, matplotlib)

    • It’s easy to get data in and out

Create a DataArray

np.random.seed(314)

# Create a 2D array.
data = np.array([[1, 2, 3], [4, 5, 6]])
print("data=", data)

# Create an xarray.
data = xr.DataArray(
    data,
    # - Assign x and y to the dimensions.
    dims=("x", "y"),
    # - Assign coordinate labels 10 and 20 to locations along x dimension.
    coords={"x": [10, 20]},
)
data= [[1 2 3]
 [4 5 6]]
# Show as HTML.
data
Loading...
  • data has 2 dimensions x, y, with 2 and 3 elements, respectively
  • The x dimension has coordinates/names
    • x has an Pandas index using ints
  • The y domension has no coordinates
  • data has no attributes
print(type(data))
<class 'xarray.core.dataarray.DataArray'>
# Print as string.
print(data)
<xarray.DataArray (x: 2, y: 3)> Size: 48B
array([[1, 2, 3],
       [4, 5, 6]])
Coordinates:
  * x        (x) int64 16B 10 20
Dimensions without coordinates: y
# Extract the numpy data structure.
vals = data.values
print("type(vals)=", type(vals))
print("vals=\n", vals)
type(vals)= <class 'numpy.ndarray'>
vals=
 [[1 2 3]
 [4 5 6]]
# Extract the dimension names which are a tuple.
print(data.dims)
('x', 'y')
# Extract the coordinates.
print("# type(data.coords)=\n%s" % type(data.coords))
print("# data.coords=\n%s" % data.coords)
# type(data.coords)=
<class 'xarray.core.coordinates.DataArrayCoordinates'>
# data.coords=
Coordinates:
  * x        (x) int64 16B 10 20
# Extract the attributes, which can store arbitrary metadata.
data.attrs
{}

Indexing

  • Slicing an xarray returns another xarray with the slice
data
Loading...
# Slice like NumPy-style.
# Set the x dimension to be 0, so get the first row.
data[0, :]
Loading...
# Set the x dimension to be 1 (like numpy), so get the second row.
data[1, :]
Loading...
# loc, "location": select by coordinate label (like pandas)
# Get data along the first dimension for the index called `10`.
data.loc[10]
Loading...
# isel, "integer select": select by dimension name and integer label
# Get data along the dimension `x` for the first index
data.isel(x=0)
Loading...
# isel, "integer select": select by dimension name and integer label
# Get data along the dimension `y` for the second index
data.isel(y=1)
Loading...
# sel, "select", by dimension name and coordinate label
# Get data along the dimension `x` and the index `10`
data.sel(x=10)
Loading...

Attributes

  • You can add metadata attributes to DataArray or to coordinates
  • Some of them are used automatically in the plots
data.attrs["long_name"] = "random_velocity"
data.attrs["units"] = "m/s"
data.attrs["description"] = "A random var created as an example"

print(data.attrs)
{'long_name': 'random_velocity', 'units': 'm/s', 'description': 'A random var created as an example'}
data
Loading...
data.x.attrs["units"] = "x units"
data
Loading...

Computation

  • Data arrays work very similarly to numpy ndarrays
# Sum 10 element-wise.
data + 10
Loading...
# Sum elements across all the dimensions
data.sum()
Loading...
# Compute mean along one dimension by label.
data.mean(dim="x")
Loading...
# Transpose.
data.T
Loading...
  • Arithmetic operations broadcast based on dimension name
  • You don’t need to insert dummy dimensions for alignment
# Create a 1-vector with coordinates along the `y` axis.
a = xr.DataArray([1, 2, 3], {"y": [0, 1, 2]})

# Create a 1-vector with dimension `z` and no coordinates.
b = xr.DataArray([10, 20, 30, 40], dims="z")
display(a)
display(b)
Loading...
Loading...
# The broadcast happens along the dimensions by name, without worrying about the order.
a + b
Loading...

The dimensions don’t have the same name.

# Create a 1-vector with coordinates along `z`.
a = xr.DataArray([1, 2, 3], {"z": [0, 1, 2]})
# Create a 1-vector with `z` dimension.
b = xr.DataArray([10, 20, 30], dims="z")

a + b
Loading...

Plotting

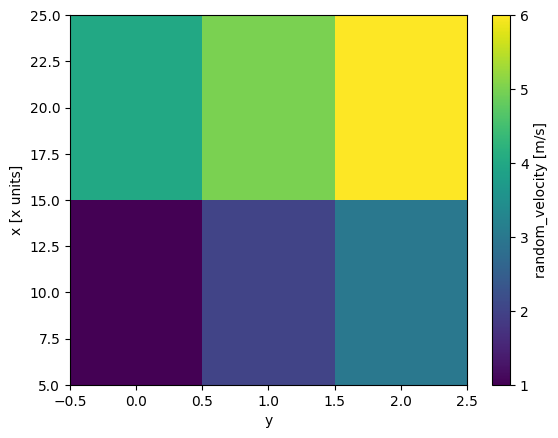

# The plot uses the attributes.
data.plot()
<Figure size 640x480 with 2 Axes>

Pandas interaction

# From xarray to multi-index pd.Series.
srs = data.to_series()
srs
x y 10 0 1 1 2 2 3 20 0 4 1 5 2 6 dtype: int64
# From pd.Series to xarray.
srs.to_xarray()
Loading...
df = data.to_dataframe(name="hello")
df
Loading...

Datasets

  • xarray.Dataset is a dict-like container of aligned xarray.DataArray
    • It is like a generalization of a pd.DataFrame
  • Variables in a Dataset can have different dimensions and dtypes
  • If two variables have the same dimension (e.g., x) the dimension must be identical in both variables

Build from dictionary

# Create a dictionary with heterogeneous data.
dict_ = dict(foo=data, bar=("x", [1, 2]), baz=np.pi)
print(dict_)
{'foo': <xarray.DataArray (x: 2, y: 3)> Size: 48B
array([[1, 2, 3],
       [4, 5, 6]])
Coordinates:
  * x        (x) int64 16B 10 20
Dimensions without coordinates: y
Attributes:
    long_name:    random_velocity
    units:        m/s
    description:  A random var created as an example, 'bar': ('x', [1, 2]), 'baz': 3.141592653589793}
# Create a `xarray.Dataset` from the dictionary.
# - `foo` is a DataArray (with 2 dimensions `x` and `y`)
# - `bar` is a one-dimensional array with dimension `x`
# - `baz` is a scalar (with no dimensions)
ds = xr.Dataset(dict_)
ds
Loading...

Extract one variable

# Extract one variable from the dataset.
ds["foo"]
# This is equivalent to
# ds.foo
assert str(ds.foo) == str(ds["foo"])
ds["bar"]
Loading...
ds["baz"]
Loading...

Extract multiple vars

ds[["foo", "bar"]].to_dataframe().values
array([[1, 1], [2, 1], [3, 1], [4, 2], [5, 2], [6, 2]])

Slicing

# Both `foo` and `bar` variables have the same coordinate `x`, so we can use `x` to slice the data.
ds["x"]
# ds.bar["x"]
# ds.foo["x"]
Loading...

Computation

Most of the computations for DataArray are possible also on Dataset

  • xarray API is inspired by Pandas
  • Pandas dataframe is focused on low-dimensional tabular data, where there is a rows-and-columns structure
    • Pandas N-dimensional panels were deprecated in favor of xarray.DataArray
  • xarray allows ndim > 2 dimensional array for which the order of dimensions doesn’t really matter
    • E.g., a movie is represented as a 4-dim array with time, row, column, color
  • DataArray

    • A multidimensional array with labeled dimensions
    • It contains metadata, such as dimension, names, coordinates, and attributes to the data
  • Dataset

    • A dict-like collection of DataArray objects with aligned dimensions
  • Dimension

    • The dimension of data is related to the number of degrees of freedom of it
  • Dimension axis

    • Set of all points in which all but one of the degrees of freedom is fixed
    • Each dimension axis has a name (e.g., “x dimension”)
    • The dimensions are stored in da.dims
  • Coordinate

    • An array that labels a dimension (like tick labels along a dimension)
    • A dimension can have a coordinate or not
    • A dimension can have an index (to use selection and alignment) or not
